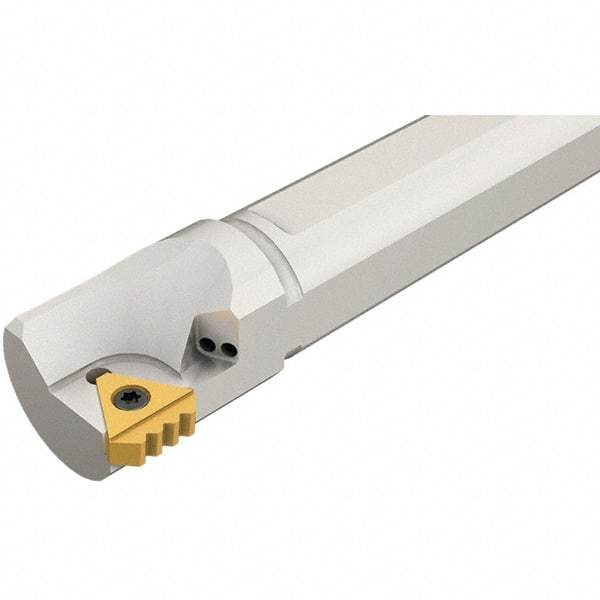

Iscar - XNUW 1003, 90° Lead Angle SXCI Internal Right Hand Indexable Profiling Toolholder - 16mm Shank Width, 125mm Long, Steel, Through Coolant
Item #: 86525847
Brand: Iscar
Model #: 2801400
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | XNUW 1003 |
| Toolholder Style | SXCI |
| Series | V-Lock |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Width/Diameter (mm) | 16.00 |
| Overall Length (mm) | 125.00 |
| Insert Holding Method | Screw |
| Rake Angle | 0 |
| Lead Angle | 90 |
| Minimum Hole Diameter (mm) | 25.00 |
| Center to Cutting Edge (mm) | 11.50 |
| Head Length (mm) | 20.00 |
| Maximum Hole Depth (mm) | 3.00 |
| Insert Inscribed Circle (mm) | 6.35 |
| Complete Insert Compatibility | XNUW 1003-06 |
