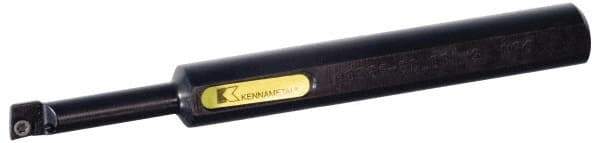

Kennametal - 6.9mm Min Bore Diam, 100mm OAL, 3/8" Shank Diam, E-SCLD Indexable Boring Bar - CD.. Insert, Screw Holding Method
Item #: 86462660
Brand: Kennametal
Model #: 1930361
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SCLD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 6.90 |
| Minimum Bore Diameter (Decimal Inch) | 0.2717 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Inch) | 3/8 |
| Insert Compatibility | CD.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 3.70 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 1.20 |
| Complete Insert Compatibility | CD.. S4T002 |
| Toolholder Material | Carbide |
