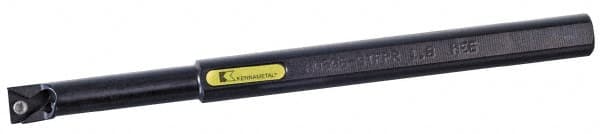

Kennametal - 7.62mm Min Bore Diam, 4" OAL, 1/4" Shank Diam, E-STFD Indexable Boring Bar - TD.. Insert, Screw Holding Method
Item #: 86461662
Brand: Kennametal
Model #: 1270956
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-STFD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 7.62 |
| Minimum Bore Diameter (Decimal Inch) | 0.3000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 101.60 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | TD.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (Decimal Inch) | 0.1560 |
| Rake Angle | 0 |
| Coolant Hole Diameter (Decimal Inch) | 0.0470 |
| Complete Insert Compatibility | TD.. 12807505 |
| Toolholder Material | Carbide |
