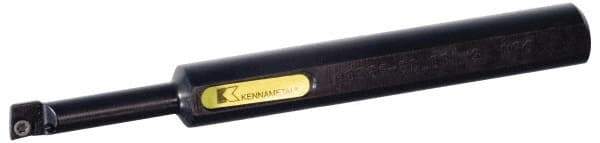

Kennametal - 16mm Min Bore Diam, 150mm OAL, 12mm Shank Diam, A-SCLP Indexable Boring Bar - CP.. Insert, Screw Holding Method
Item #: 86460771
Brand: Kennametal
Model #: 1098174
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLP |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | CP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 9.00 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| Coolant Hole Diameter (mm) | 4.00 |
| Complete Insert Compatibility | CP.. 060204 |
| Toolholder Material | Steel |
