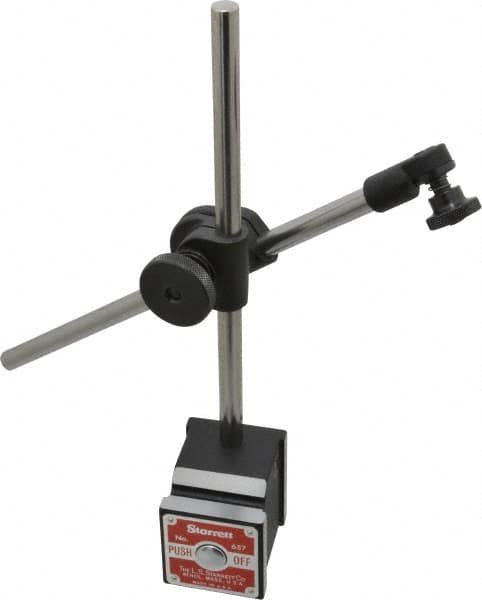

Starrett - 150 Lb Magnetic Force, Fine Adjustment Indicator Positioner & Holder with Base - Post & Rod, Rectangular Base, 1-15/16" Base Height, 1-5/8" Base Length, 1-7/8" Base Width
Item #: 86422284
Brand: Starrett
Model #: 52749
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Includes Base | Yes |
| Fine Adjustment | Yes |
| Magnetic Pull | 150 Lbs |
| Base Height (mm) | 49.21 |
| Base Height (Inch) | 1 |
| Base Height (Decimal Inch) | 1.9375 |
| Base Length (mm) | 41.28 |
| Base Length (Inch) | 1-5/8 |
| Base Width/Diameter (mm) | 47.63 |
| Base Width/Diameter (Inch) | 1-7/8 |
| Base Shape | Rectangular |
| Post Height (mm) | 188.91 |
| Post Height (Inch) | 7-7/16 |
| Arm Length (mm) | 241.30 |
| Arm Length (Inch) | 9-1/2 |
| Post Diameter (mm) | 9.53 |
| Post Diameter (Inch) | 3/8 |
| Arm Diameter (mm) | 9.53 |
| Arm Diameter (Inch) | 3/8 |
| Thread Size | 1/4-20 |
| Arm Style | Post & Rod |
| Includes | Gage Holding Rod; Magnetic Base; Swivel Post Snug; Upright Post Assembly |
