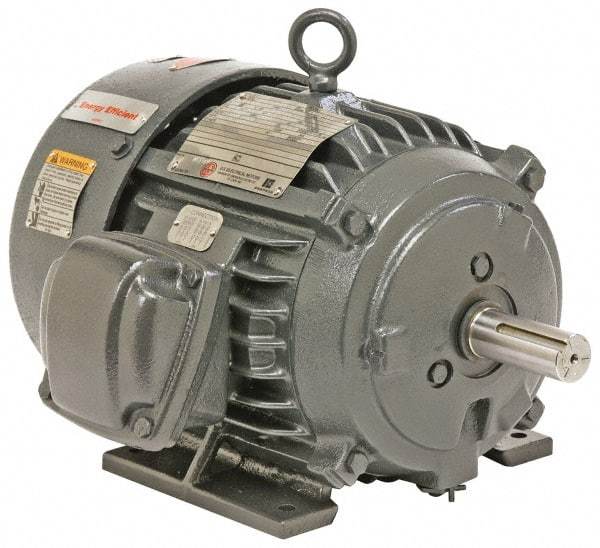

US Motors - 1/2 hp, TEFC Enclosure, No Thermal Protection, 1,735 RPM, 230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 56 Frame, Rigid Mount, 1 Speed, Ball Bearings, 1.9/0.95 Full Load Amps, B Class Insulation, Reversible
Item #: 86353869
Brand: US Motors
Model #: XS12S2B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1735 |
| Voltage | 230/460 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 1.9/0.95 |
| Insulation Class | B |
| Frame Material | Cast Iron/Fab |
| Overall Length (Decimal Inch) | 12.3600 |
| Full Load Efficiency Rating | 79.2 |
| Service Factor Rating | 1 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
