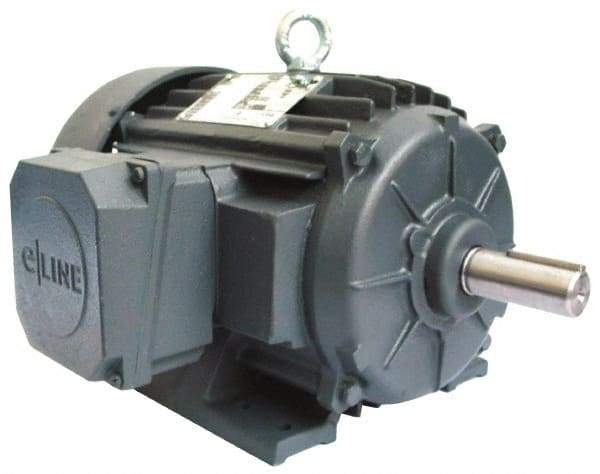

US Motors - 2 hp, TEFC Enclosure, No Thermal Protection, 1,735 RPM, 575 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 145 Frame, Rigid Mount, 1 Speed, Ball Bearings, 2.2 Full Load Amps, F Class Insulation, CCW Lead End
Item #: 86337698
Brand: US Motors
Model #: ELT2E2G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1735 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 145 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 2.2 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 14.2000 |
| Full Load Efficiency Rating | 82 |
| Service Factor Rating | 1.4 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
