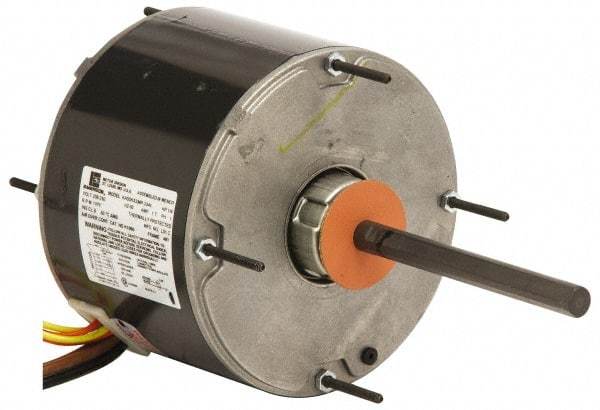

US Motors - 1/5 hp, TEAO Enclosure, Auto Thermal Protection, 1,075 RPM, 208-230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Stud/Band Mount, 1 Speed, Sleeve Bearings, 1.4-1.7 Full Load Amps, B Class Insulation, Reversible
Item #: 86224631
Brand: US Motors
Model #: 5454
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEAO |
| Horsepower | 1/5 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 208-230 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Stud/Band |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Full Load Amperage | 1.4-1.7 |
| Insulation Class | B |
| Shaft Diameter x Length (Inch) | 1/2 x 4 |
| Full Load Efficiency Rating | 55.00 |
| Motor Run Capacitor Micro Farid | 3.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
