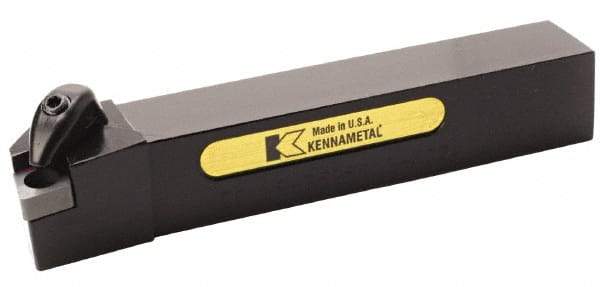

Kennametal - DCLN, Right Hand Cut, 5° Lead Angle, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 250mm OAL, CN..1906.. Insert Compatibility, Series Kenclamp
Item #: 86211729
Brand: Kennametal
Model #: 2273092
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DCLN |
| Rake | Negative |
| Series | Kenclamp |
| Lead Angle | 5 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | CN..1906.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 50.00 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Toolholder Material | Steel |
