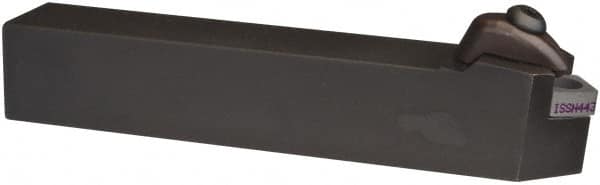

Kennametal - DSDN, Neutral Cut, 0° Lead Angle, 1" Shank Height x 1" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, SN..43. Insert Compatibility, Series Kenclamp
Item #: 86211000
Brand: Kennametal
Model #: 1908834
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DSDN |
| Rake | Negative |
| Rake Angle | -7 |
| Series | Kenclamp |
| Lead Angle | 0 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | SN..43. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (mm) | 36.58 |
| Head Length (Decimal Inch) | 1.4400 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
