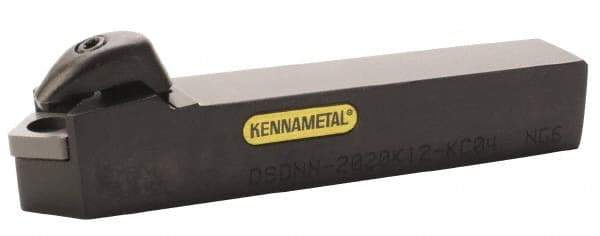

Kennametal - DSDN, Neutral Cut, 0° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, SN..1506.. Insert Compatibility, Series Kenclamp
Item #: 86210754
Brand: Kennametal
Model #: 1875216
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DSDN |
| Rake | Negative |
| Rake Angle | -7 |
| Series | Kenclamp |
| Lead Angle | 0 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | SN..1506.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 12.50 |
| Head Length (mm) | 42.00 |
| Head Length (Decimal Inch) | 1.6535 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Toolholder Material | Steel |
