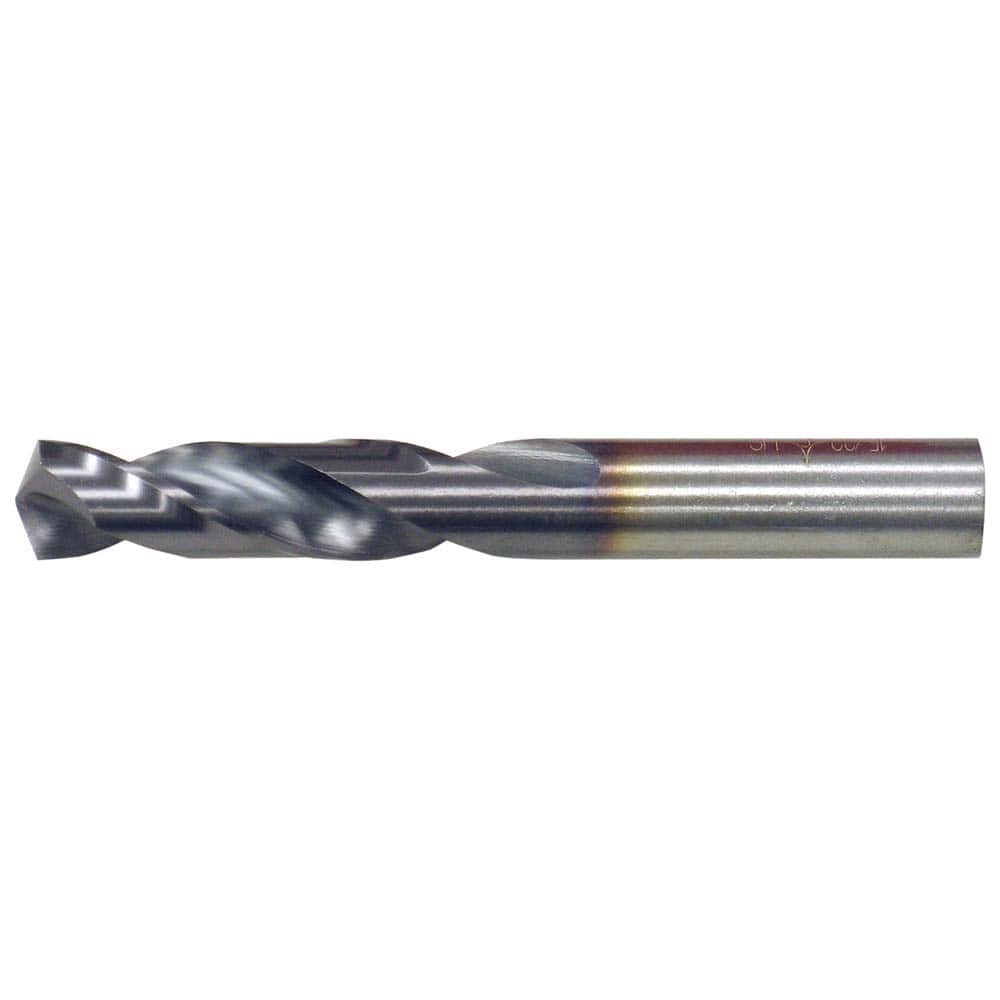

Screw Machine Length Drill Bit: 0.3543″ Dia, 135 °, Cobalt TiCN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2133-TC
Item #: 86190816
Brand: Cleveland
Model #: C14769
Product Specifications
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | TiCN |
| Drill Point Angle | 135 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Drill Bit Size (Decimal Inch) | 0.3543 |
| Overall Length (Decimal Inch) | 3.3070 |
| Series | 2133-TC |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Flute Length (Decimal Inch) | 1.5750 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN; ANSI |
| Material Grade | M42 |
