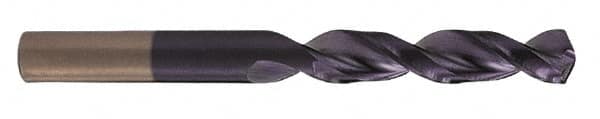

Cleveland - 0.339" 135° Parabolic Flute Cobalt Screw Machine Drill Bit
Item #: 75906461
Brand: Cleveland
Model #: C14419
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3390 |
| Drill Bit Size (Letter) | R |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 1-11/16 |
| Overall Length (Inch) | 3 |
| Overall Length (mm) | 76.20 |
| Overall Length (Decimal Inch) | 3.0000 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.3390 |
| Specification Designation | ANSI |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Web Thinning | Web-Thinned |
| Material Grade | M42 |
| Series/List | 2175T |
