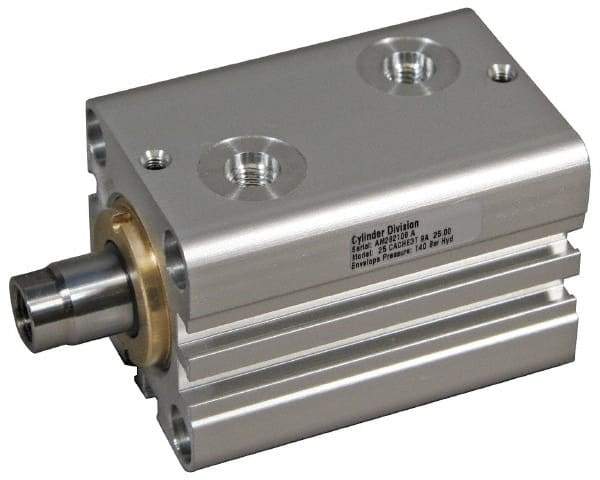

Schrader Bellows - 40 Bore, 22 Rod Diam, Double Acting Aluminum Body Compact Hydraulic Cylinder - 2,030 psi Max Working Pressure, 118mm OAL, 50mm Stroke Length
Item #: 86157617
Brand: Schrader Bellows
Model #: 1H000040020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Mounting Style | Bolt Clearance Holes with Pilot Gland |
| Bore Size (mm) | 40.00 |
| Rod Diameter (mm) | 22.00 |
| Stroke Length (mm) | 50.00 |
| Overall Length (mm) | 118.0000 |
| Body Material | Aluminum |
| Maximum Working Pressure (psi) | 2030.000 |
