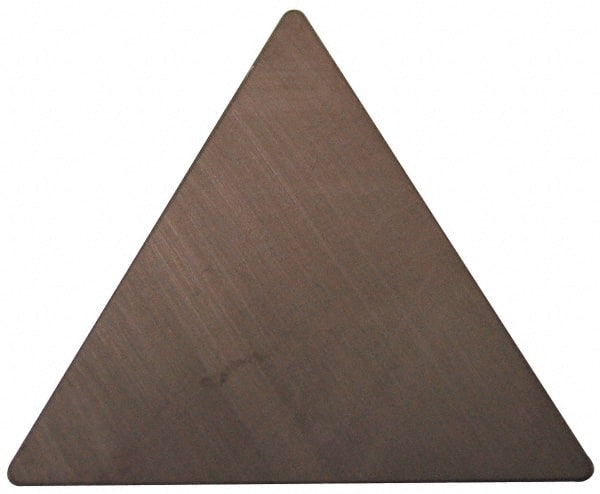

TPG322-T0525 HC2 Ceramic Turning Insert Al2O3/TiC Finish, 3/8″ Inscribed Circle, 1/32″ Corner Radius, 60° Triangle
Item #: 86123338
Brand: NTK
Model #: 5330816
Product Specifications
Insert Style | TPG |
Insert Shape Code | T |
Insert Size Code | 322 |
Insert Shape | Triangle |
Clearance Code | P |
Tolerance Code | G |
Insert Material | Ceramic |
Manufacturer Grade | HC2 |
Inscribed Circle (Inch) | 3/8 |
Inscribed Circle (Decimal Inch) | 0.3750 |
Insert Holding Method | Clamp |
Insert Thickness (Inch) | 1/8 |
Insert Thickness (Decimal Inch) | 0.1250 |
Corner Radius (Inch) | 1/32 |
Corner Radius (Decimal Inch) | 0.0312 |
Included Angle | 60.0 |
Relief Angle | 11 |
Series | TPG |
Rake | Negative |
Primary Workpiece Material | Cast Iron |
Primary Workpiece Material Code | K |
Secondary Workpiece Material | Hard Material |
Secondary Workpiece Material Code | H |
Iso Code | TPGN 160308 T01225 |
Standards | ISO |
Chip Breaker | N |
Coating/Finish | Al2O3; TiC |
