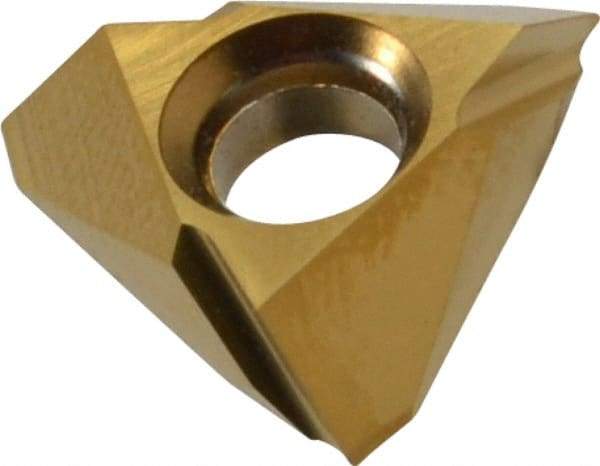

NTK - TB321.5 Grade ZM3 Carbide Turning Insert - TiN Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 0.0059" Corner Radius
Item #: 86121985
Brand: NTK
Model #: 5810528
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TB |
| Insert Size | 321.5 |
| Material | Carbide |
| Length (mm) | 2.50 |
| Length (Decimal Inch) | 0.0984 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Manufacturer's Grade | ZM3 |
| Coating | TiN |
| Material Grade | Micrograin |
| Relief Angle | 13 |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Insert Holding Method | Screw |
| Shape | Triangle |
