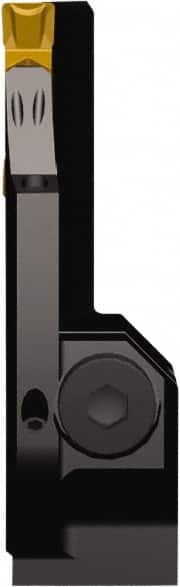

Seco - CFO, External, Right Hand, 1.42" Max Depth of Cut, 6mm Min Groove Width, Indexable Grooving Tool Holder - LC.. 1606.. Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 86098837
Brand: Seco
Model #: 62107
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.4200 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | CFO |
| Insert Compatibility | LC.. 1606.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Jetstream; Multi-Directional Turning (MDT) |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 6 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0400 |
| Maximum Groove Outside Diameter (Decimal Inch) | 3.1000 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 2.1700 |
| Head Length (Decimal Inch) | 2.8100 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCGF 160604-0600-GG; LCGF 160604-0600-GS; LCGN 160602-0600-FG; LCGN 160602-0635-FG; LCGN 160610-0200L-D76; LCGN 160610-0200R-D76; LCGN 1606M0-0300-R; LCMF 160600-A250-MP; LCMF 160604-0600-FT; LCMF 160604-0600-MC; LCMF 160604-0600-MT; LCMF 160605-A250-FT |
