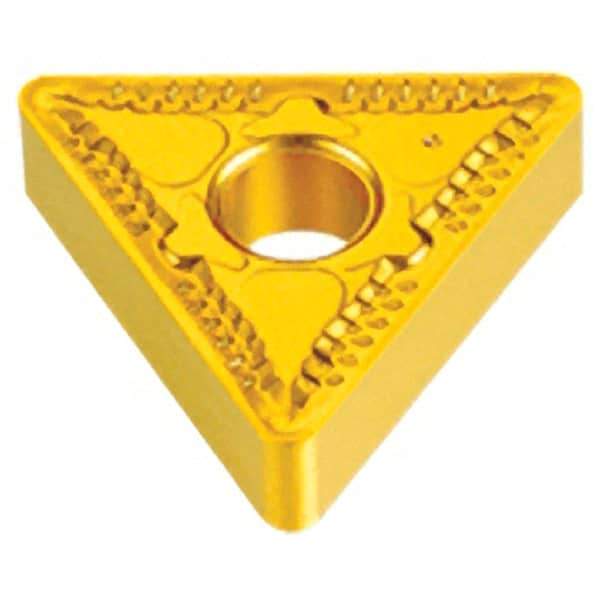

Iscar - TNMG543 GN Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 5/8" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 86092475
Brand: Iscar
Model #: 5550476
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 543 |
| Material | Carbide |
| Length (mm) | 27.51 |
| Length (Decimal Inch) | 1.0830 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | GN |
| ISO Number | TNMG 543-GN |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TNMG 543-GN |
| Included Angle | 60 |
| Series | Isoturn |
| Insert Holding Method | Pin & Clamp |
| MultiUseTool | Yes |
| Shape | Triangle |
