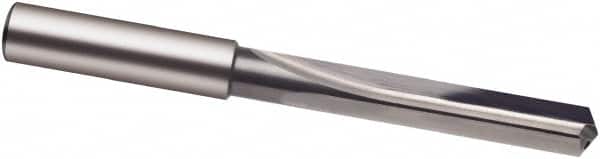

Die Drill Bit: 0.7677″ Dia, 120 °, Solid Carbide Bright Finish, Series 768
Item #: 86082781
Brand: Guhring
Model #: 9007680195000
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 19.50 |
| Tool Material | Carbide |
| Coating/Finish | Bright |
| Flute Length (mm) | 101.00 |
| Drill Point Angle | 120 |
| Overall Length (mm) | 153.00 |
| Shank Diameter (mm) | 20.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.7677 |
| Material Grade | K40 |
| Series | 768 |
| Number Of Flutes | 2 |
| Point Type | Special |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Primary Workpiece Material | Cast Aluminum |
| Secondary Workpiece Material | Cast Aluminum |
| Flute By Diameter Ratio | 4xD |
