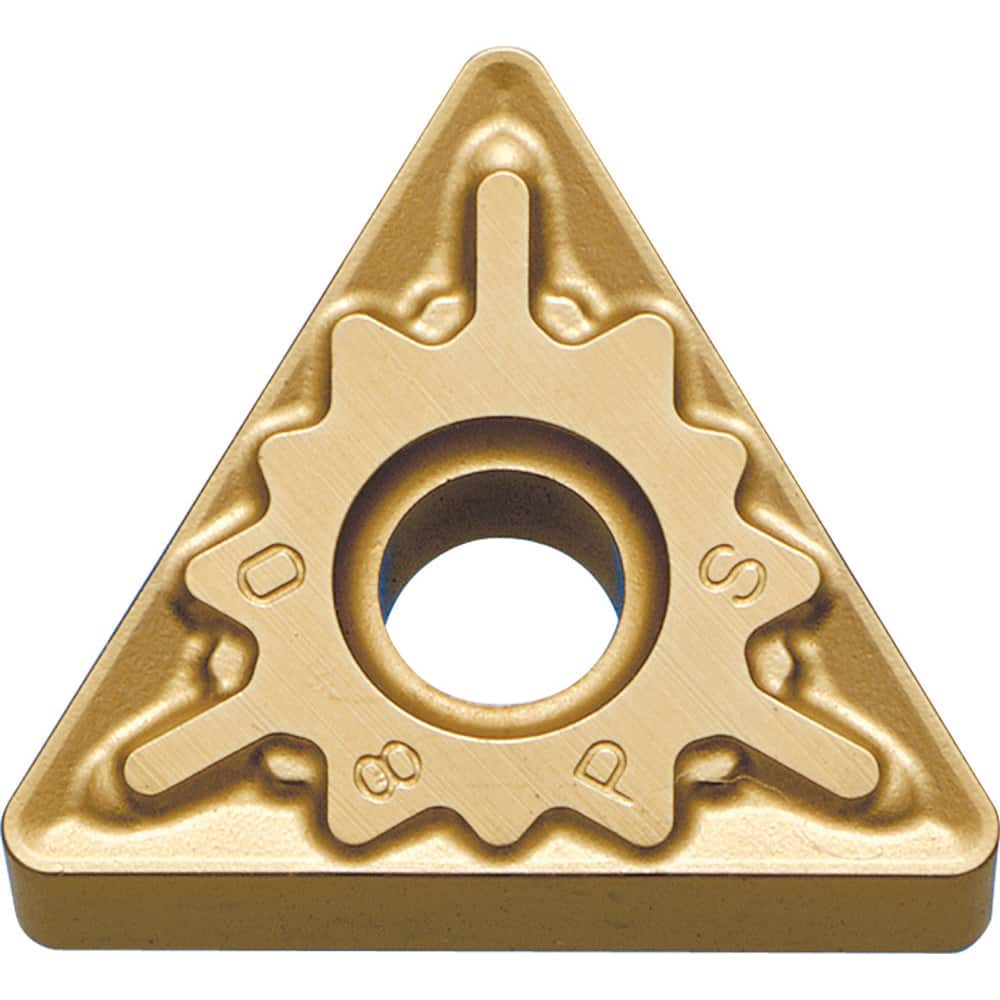

TNMG220408PS CA5535 Carbide Turning Insert TiCl2O3/TiN Finish, Neutral, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 0.1874″ Thick, 60° Triangle, Series CA55
Item #: 86075660
Brand: Kyocera
Model #: TJT06421
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 432 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | CA5535 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | CA55 |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | P |
| Manufacturers Catalog Number | TNMG432PSCA5535 |
| Chip Breaker | G |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCl2O3; TiN |
| Multi-Use Application | External Turning; Chamfering; Facing; Copying; Boring |
