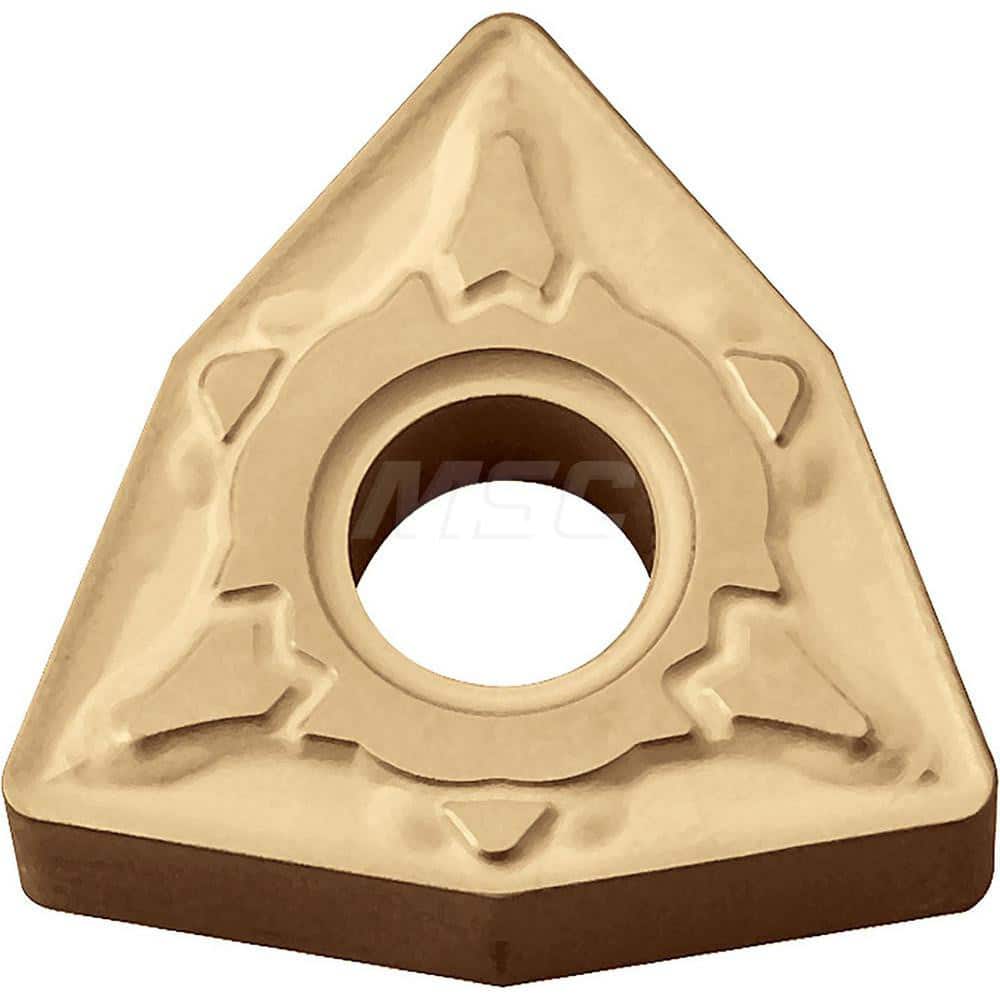

Kyocera WNMG 432GT CA5515 Grade CVD Carbide, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Continuous and Medium-Roughing in (P) Carbon/Alloy Steel
Item #: 86075553
Brand: Kyocera
Model #: TJQ08460
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 432 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA5515 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Primary Workpiece Material | P |
| Iso Code | WNMG080408GT |
| Manufacturers Catalog Number | WNMG432GTCA5515 |
| Chip Breaker | GT |
| Style | WNMG |
| Full Radius | No |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
