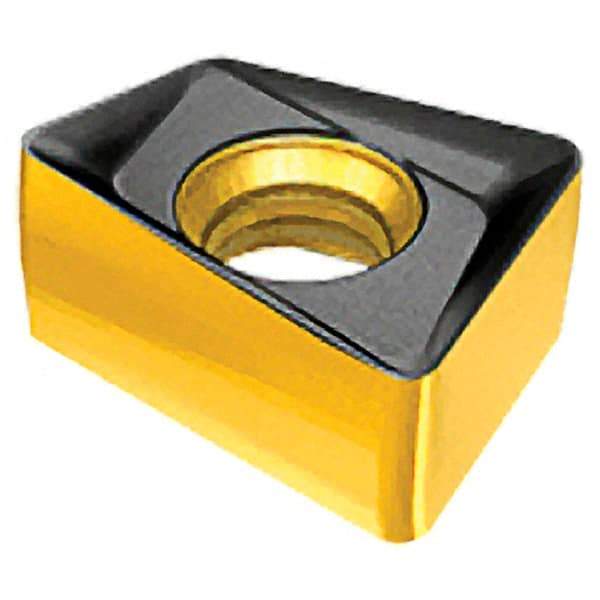

Iscar - H490 ANCX090408 Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.2047" Thick, 0.8mm Corner Radius
Item #: 86065869
Brand: Iscar
Model #: 5606028
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H490 ANCX |
| Insert Size | 090408 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (Decimal Inch) | 0.2559 |
| Length (Decimal Inch) | 0.3346 |
| Thickness (Decimal Inch) | 0.2047 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| ISO Number | H490 ANCX 090408PDR |
