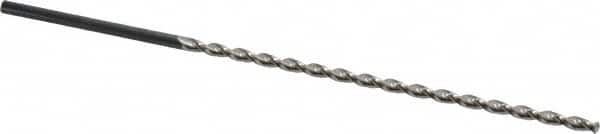

Extra Length Drill Bit: 0.1457″ Dia, 130 °, Cobalt Bright Finish, 4.528″ Flute Length, 6.496″ OAL, Parabolic Flute, Straight-Cylindrical Shank, Series 618
Item #: 85984631
Brand: Guhring
Model #: 9006180037000
Product Specifications
| Tool Material | Cobalt |
| Coating/Finish | Bright |
| Drill Point Angle | 130 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Parabolic |
| Series | 618 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.1457 |
| Overall Length (Decimal Inch) | 6.4960 |
| Shank Diameter (Decimal Inch) | 0.1457 |
| Flute Length (Decimal Inch) | 4.5280 |
| Specification Designation | DIN |
| Specification Number | DIN 1869 |
