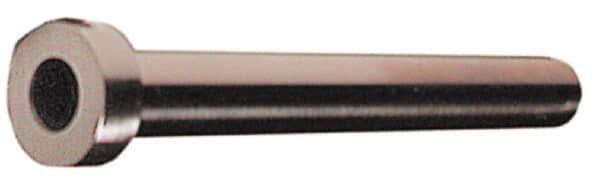

Gibraltar - 7/16" Inside x 5/8" OD, 7" OAL, Nitride Coated Die Steel, Die & Mold Ejector Sleeve - 7/8" Head Diam, 1/4" Head Height, 45° Chamfer Angle, 3/64" Chamfer Length, 1/32" Corner Radius
Item #: 85932762
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Body Inside Diameter (Inch) | 7/16 |
| Body Outside Diameter (Inch) | 5/8 |
| Head Diameter (Inch) | 7/8 |
| Head Height (Inch) | 1/4 |
| Overall Length (Inch) | 7 |
| Corner Radius (Inch) | 1/32 |
| Chamfer Length (Inch) | 3/64 |
| Chamfer Angle | 45.00 |
| Material | Die Steel |
| Finish/Coating | Nitride |
| Tolerance (Decimal Inch) | +0.0000/-0.0010 (Body Outside Diameter); +0.0000/-0.0020 (Head Height); +0.0000/-0.0100 (Head Diameter); +0.1200/-0.0000 (Overall Length) |
