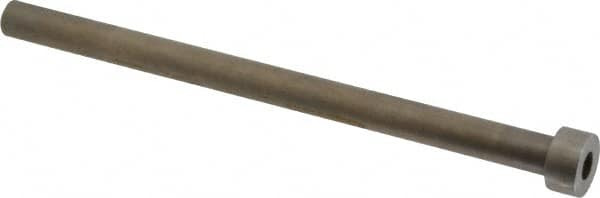

Gibraltar - 3/16" Inside x 5/16" OD, 5" OAL, Nitride Coated Die Steel, Die & Mold Ejector Sleeve - Steel, 110mm Pin Length
Item #: 85932317
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Body Inside Diameter (Inch) | 3/16 |
| Body Outside Diameter (Inch) | 5/16 |
| Head Diameter (Inch) | 1/2 |
| Head Height (Inch) | 1/4 |
| Overall Length (Inch) | 5 |
| Corner Radius (Inch) | 1/32 |
| Chamfer Length (Inch) | 3/64 |
| Chamfer Angle | 45.00 |
| Material | Die Steel |
| Finish/Coating | Nitride |
| Tolerance (Decimal Inch) | +0.0000/-0.0010 (Body Outside Diameter); +0.0000/-0.0020 (Head Height); +0.0000/-0.0100 (Head Diameter); +0.1200/-0.0000 (Overall Length) |
