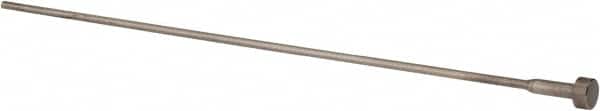

Gibraltar - 5/64" Pin Diam, 1/4" Head Diam x 1/8" Head Height, 6" OAL, Shoulder Ejector Pin - Steel, 5-1/2" Pin Length
Item #: 85929321
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Pin Type | Shoulder Ejector Pin |
| Pin Diameter (Inch) | 5/64 |
| Head Diameter (Inch) | 1/4 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Head Height (Inch) | 1/8 |
| Head Height (Decimal Inch) | 0.1250 |
| Overall Length (Inch) | 6 |
| Material | Steel |
| Finish/Coating | Nitride |
| Shoulder Diameter (Inch) | 1/8 |
| Shoulder Diameter (Decimal Inch) | 0.1250 |
| Shoulder Length (Inch) | 1/2 |
| Pin Length (Decimal Inch) | 5.5000 |
| Tolerance (Decimal Inch) | -0.0003/-0.0006 (Pin Diameter); +0.0000/-0.0010 (Shoulder Diameter); +0.0100/-0.0100 (Shoulder Length); +0.0000/-0.0020 (Head Thickness); +0.0000/-0.0100 (Head Diameter); +0.1250/-0.0000 (Overall Length) |
