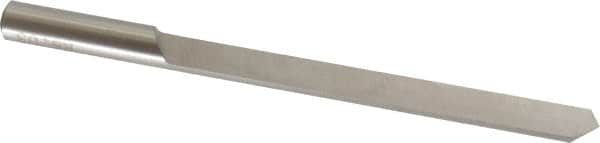

Guhring - 5.9mm 130° Parabolic Flute High Speed Steel Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 28mm Flute Length, 66mm OAL, Standard Point, Straight Shank
Item #: 85907210
Brand: Guhring
Model #: 9005520059000
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2323 |
| Drill Bit Size (mm) | 5.90 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.2323 |
| Specification Designation | DIN |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.018 |
| Specification Number | DIN 1897 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Series/List | 552 |
