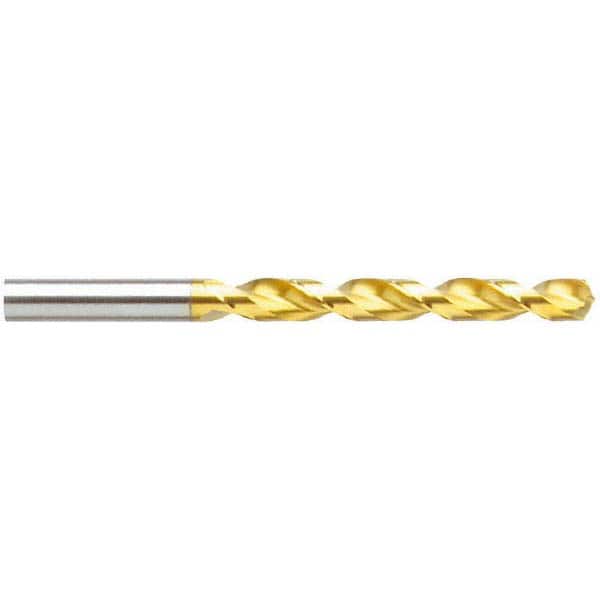

Jobber Length Drill Bit: 0.3465″ Dia, 130 °, High Speed Steel TiN Finish, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank
Item #: 85896546
Brand: Guhring
Model #: 9006520088000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3465 |
| Drill Bit Size (mm) | 8.80 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Flute Length (Inch) | 3-3/16 |
| Shank Diameter (Decimal Inch) | 0.3465 |
| Overall Length (Inch) | 4-29/32 |
| Drill Bit Diameter Tolerance | -0.022 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.00 |
| Specification Designation | DIN |
