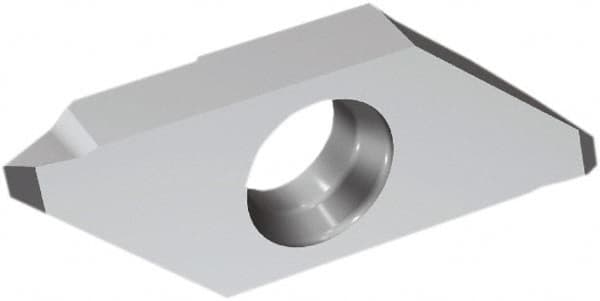

Sandvik Coromant - MAT3 Grade H13A, External Partial Profile 60° Threading Insert - 0.35 to 10mm & 24 to 72 TPI Ext Pitch, Left Hand Insert, Uncoated, Carbide
Item #: 85871812
Brand: Sandvik Coromant
Model #: 5735475
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MAT |
| Insert Size | 3 |
| Thread Type | External |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Manufacturer's Grade | H13A |
| External Pitch/TPI | 0.35-1.00 mm; 24-72 TPI |
| Coating | Uncoated |
| Material | Carbide |
| ISO Number | MATL360CH13A |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Series | CoroCut XS |
| Included Angle of Threading Tip | 60 |
| Manufacturers Catalog Number | 5735475 |
