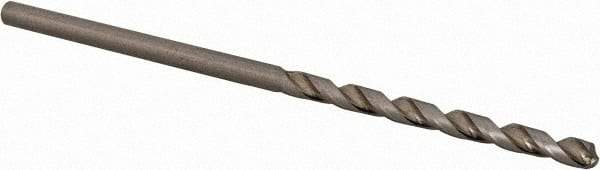

Walter-Titex - 1.8mm 130° Cobalt Jobber Drill - Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 46mm OAL, VA Point
Item #: 85850287
Brand: Walter-Titex
Model #: 5060309
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 1.80 |
| Drill Bit Size (Decimal Inch) | 0.0709 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 22.00 |
| Flute Length (Decimal Inch) | 0.8661 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8110 |
| Flute Length x Diameter Ratio | 8xD |
| Point Type | VA Point |
| Shank Diameter (mm) | 1.80 |
| Shank Diameter (Decimal Inch) | 0.0709 |
| Maximum Drilling Depth (Decimal Inch) | 0.7480 |
| Maximum Drilling Depth (mm) | 19.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 24.00 |
| Shank Length (Decimal Inch) | 0.9449 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Number of Flutes | 2 |
| Specification Number | DIN 338 |
| Material Grade | M35 |
| Series/List | A1244 |
