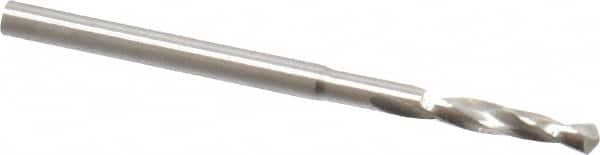

Micro Drill Bit: 0.0528″ Dia, 118 °, Cobalt Bright/Uncoated, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series 301
Item #: 85781870
Brand: Guhring
Model #: 9003010013400
Product Specifications
| Drill Bit Size (mm) | 1.34 |
| Drill Bit Size (Decimal Inch) | 0.0528 |
| Tool Material | Cobalt |
| Flute Length (mm) | 9.50 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Right Hand |
| Series | 301 |
| Overall Length (mm) | 25.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.000 to -0.004 mm |
| Primary Workpiece Material | Aluminum; Stainless Steel; Brass; Cast Iron; Aluminum Alloy; Steel; Nickel Alloy; Titanium Alloy; Hardened Materials |
| Secondary Workpiece Material | Aluminum; Stainless Steel; Brass; Cast Iron; Aluminum Alloy; Steel; Nickel Alloy; Titanium Alloy; Hardened Materials |
| Shank Diameter (mm) | 1.50 |
| Drill Bit Grade | General Purpose |
| Spiral Type | Regular |
| Specification Number | DIN 1899 |
