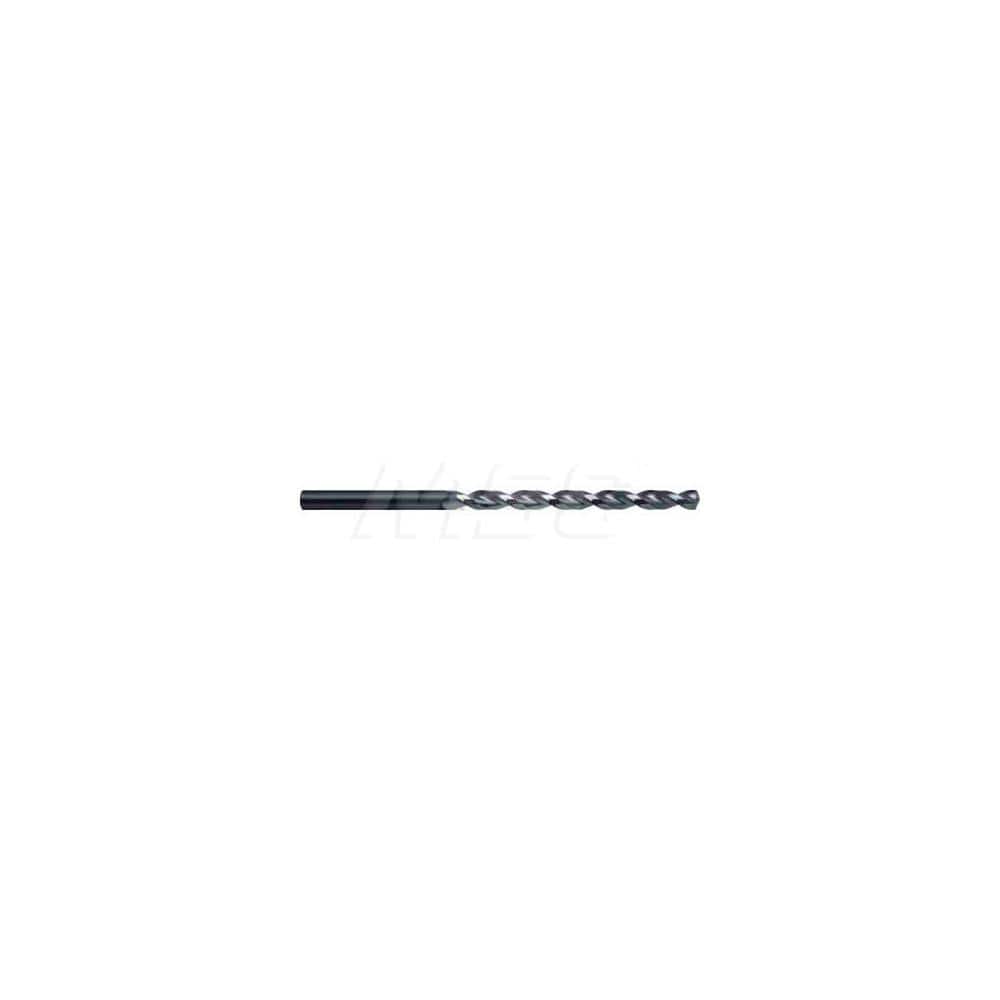

Taper Length Drill Bit: 0.0400″ Dia, 130 ° Bright/Uncoated, RH Cut, Parabolic Flute, Cylindrical Shank, Series 336
Item #: 85768604
Brand: Guhring
Model #: 9003360010200
Product Specifications
| Drill Bit Size (Wire) | #60 |
| Tool Material | Cobalt |
| Coating/Finish | Bright/Uncoated |
| Flute Length (Inch) | 1-5/16 |
| Shank Type | Cylindrical |
| Point Type | Standard |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Drill Bit Size (Decimal Inch) | 0.0400 |
| Flute Length x Diamter Ratio | 10xD |
| Overall Length (Decimal Inch) | 2-7/32 |
| Cutting Direction | Right Hand |
| Series | 336 |
| Shank Diameter (Decimal Inch) | 0.0402 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 1.2390 |
| Maximum Drilling Depth (mm) | 31.47 |
| Shank Length (mm) | 23.00 |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Threaded Shank | No |
| Standards | DIN 340 |
| Specification Number | DIN 340 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
| Material Application3 | Stainless Steel; Cast Iron; Steel; Hardened Materials |
