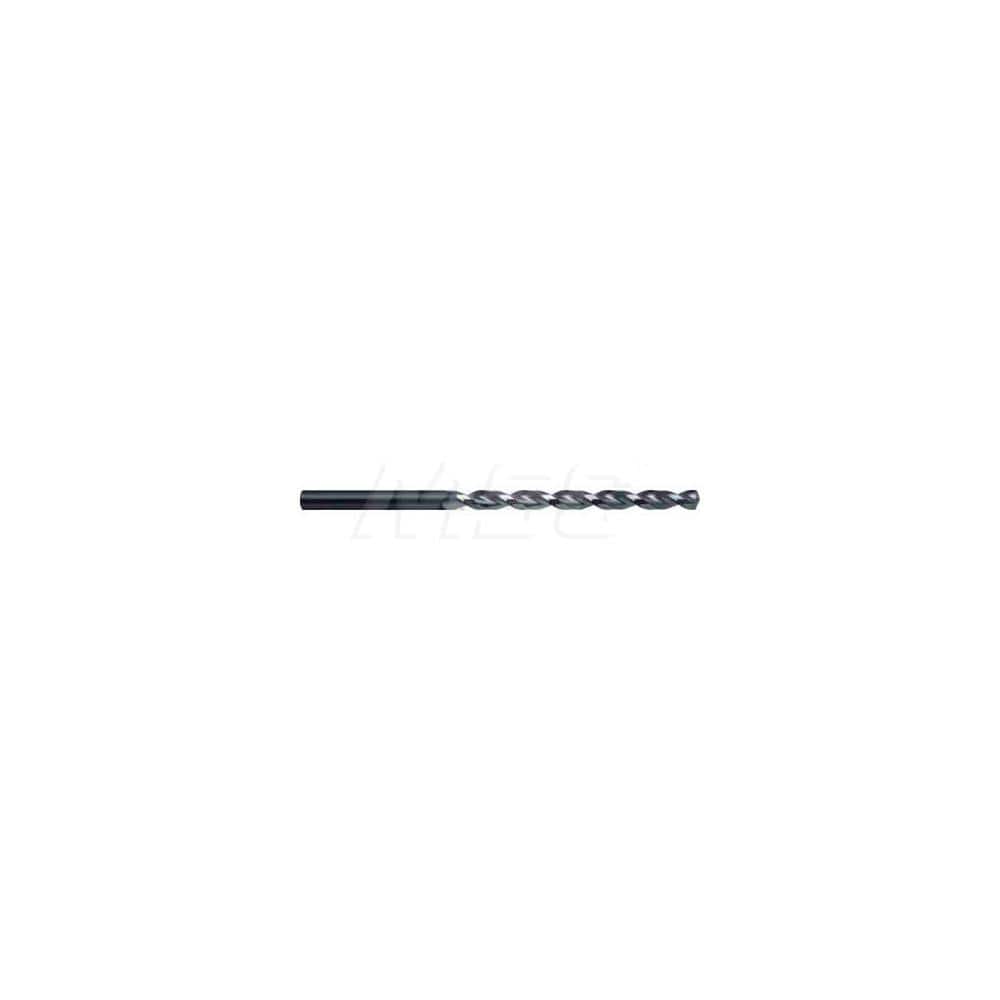

Taper Length Drill Bit: 0.1200″ Dia, 130 ° Bright/Uncoated, RH Cut, Parabolic Flute, Cylindrical Shank, Series 336
Item #: 85768315
Brand: Guhring
Model #: 9003360030500
Product Specifications
| Drill Bit Size (Wire) | #31 |
| Tool Material | Cobalt |
| Coating/Finish | Bright/Uncoated |
| Flute Length (Inch) | 2-23/32 |
| Shank Type | Cylindrical |
| Point Type | Standard |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Drill Bit Size (Decimal Inch) | 0.1200 |
| Flute Length x Diamter Ratio | 10xD |
| Overall Length (Decimal Inch) | 4-3/16 |
| Cutting Direction | Right Hand |
| Series | 336 |
| Shank Diameter (Decimal Inch) | 0.1201 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 2.5370 |
| Maximum Drilling Depth (mm) | 64.43 |
| Shank Length (mm) | 37.00 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Threaded Shank | No |
| Standards | DIN 340 |
| Specification Number | DIN 340 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
| Material Application3 | Stainless Steel; Cast Iron; Steel; Hardened Materials |
