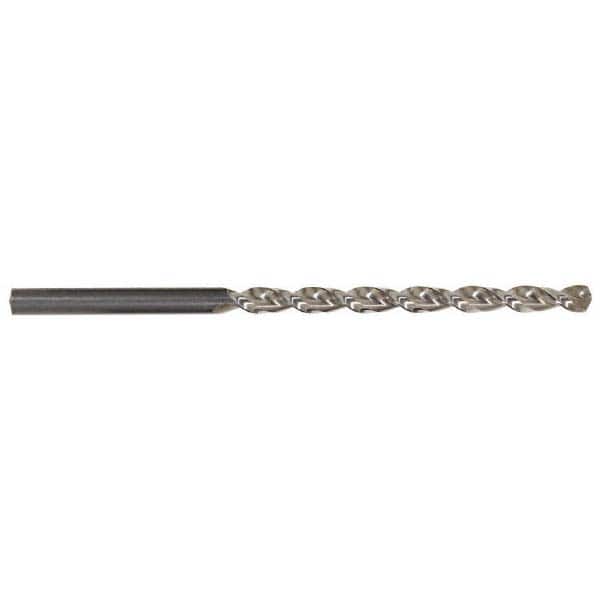

Taper Length Drill Bit: 0.0860″ Dia, 130 ° Bright/Uncoated, RH Cut, Parabolic Flute, Straight Shank, Series 535
Item #: 85765444
Brand: Guhring
Model #: 9005350021800
Product Specifications
| Drill Bit Size (Wire) | #44 |
| Tool Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Flute Length (Inch) | 2-5/16 |
| Shank Type | Straight |
| Point Type | Standard |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Drill Bit Size (Decimal Inch) | 0.0860 |
| Overall Length (Decimal Inch) | 3-17/32 |
| Cutting Direction | Right Hand |
| Series | 535 |
| Shank Diameter (Decimal Inch) | 0.0858 |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Specification Number | DIN 340 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
| Material Application3 | Cast Iron; Aluminum Alloy; Steel |
