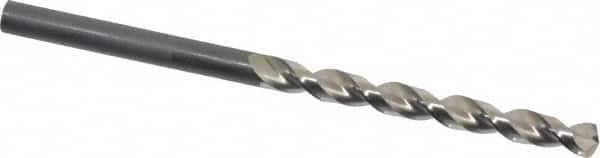

Jobber Length Drill Bit: 0.1654″ Dia, 130 °, Cobalt Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 622
Item #: 85762128
Brand: Guhring
Model #: 9006220042000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1654 |
| Drill Bit Size (mm) | 4.20 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1-11/16 |
| Shank Diameter (Decimal Inch) | 0.1654 |
| Overall Length (Inch) | 2-15/16 |
| Series | 622 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 1.4450 |
| Maximum Drilling Depth (mm) | 36.70 |
| Shank Length (mm) | 32.00 |
| Drill Bit Diameter Tolerance | -0.018 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | DIN 338 |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 4.00 - 5.00 |
| Specification Designation | DIN |
