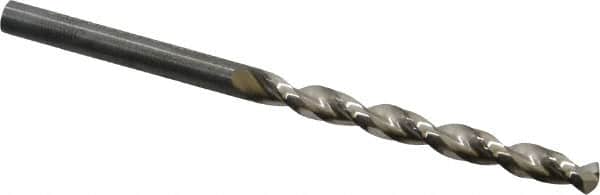

Guhring - #12 130° Cobalt Jobber Drill - Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-3/8" OAL, Standard Point
Item #: 85757128
Brand: Guhring
Model #: 9006220048000
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #12 |
| Drill Bit Size (Decimal Inch) | 0.1890 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-3/64 |
| Overall Length (Inch) | 3-3/8 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.1890 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | -0.018 to 0.000 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
| Series/List | 622 |
