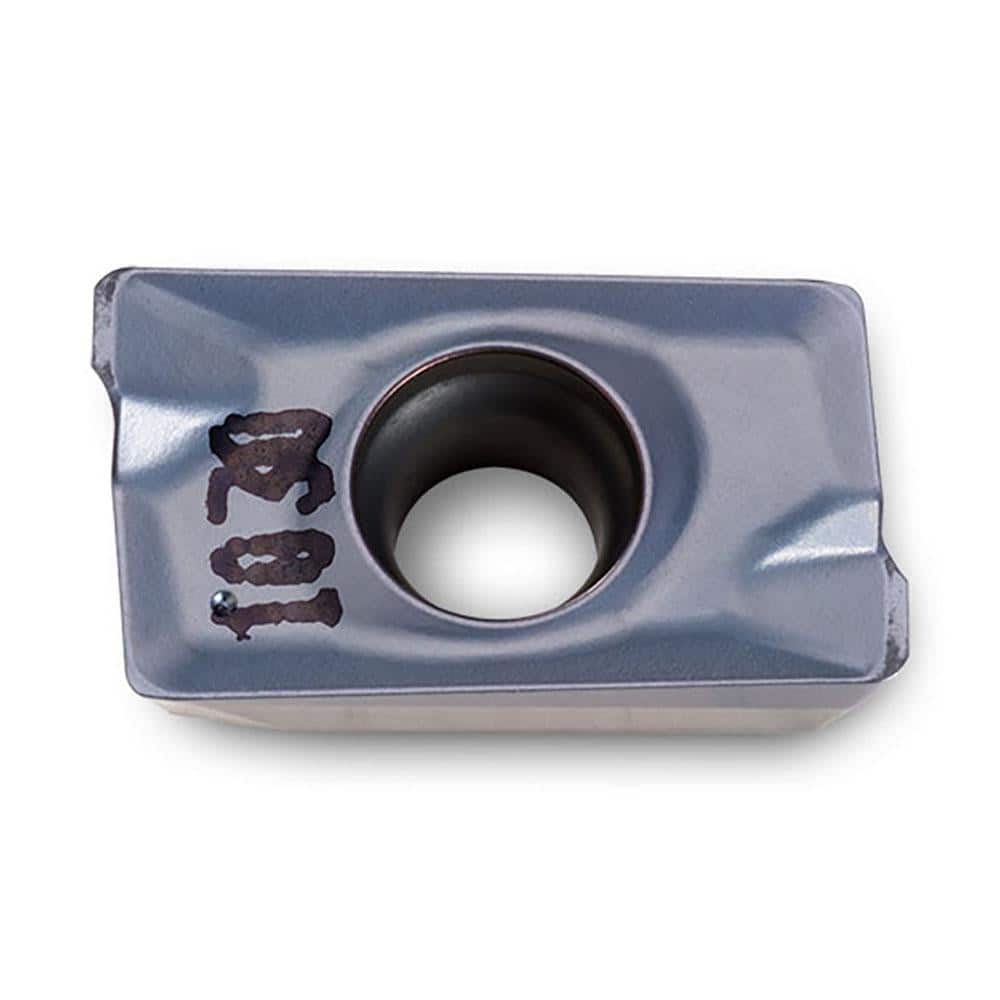

APKT160408L IN1030 Carbide Milling Insert TiCN Finish, 0.636″ Long x 0.207″ Thick x 0.372″ Wide
Item #: 85533172
Brand: Ingersoll Cutting Tools
Model #: 5802446
Product Specifications
| Insert Style | APKT |
| Insert Size Code | 160408 |
| Insert Size | 160408 |
| Insert Material | Solid Carbide |
| Material Grade | C6; C1; C2 |
| Manufacturer Grade | IN1030 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Left Hand |
| Relief Angle | 11.00 |
| Series | APKT16 |
| Coating Process | PVD |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Iso Code | APKT160408L IN1030 |
| Standards | ISO |
| Shape | Parallelogram |
| Coating/Finish | Coated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3720 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2070 |
| Length (Decimal Inch - 4 Decimals) | 0.6360 |
