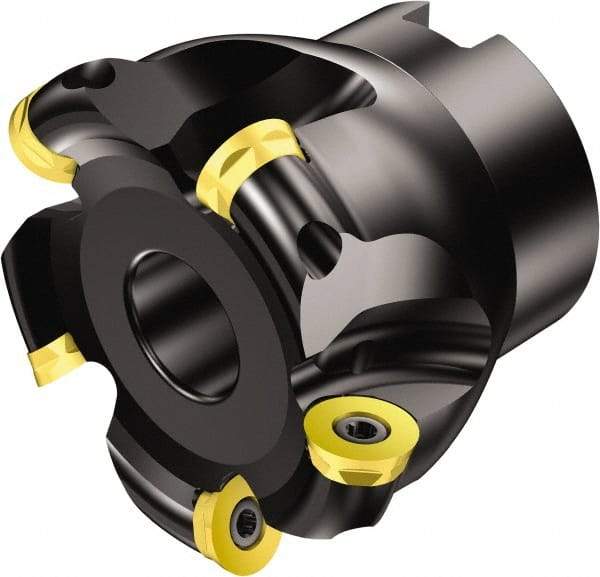

Sandvik Coromant - 5 Inserts, 2.3701" Cutter Diam, 0.315" Max Depth of Cut, Indexable High-Feed Face Mill - 1" Arbor Hole Diam, 0.3839" Keyway Width, 1.9685" High, RA300..Rxx Toolholder, R300-1648.. Inserts, Series CoroMill 300
Item #: 85458719
Brand: Sandvik Coromant
Model #: 5739469
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.3701 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | CoroMill 300 |
| Cutter Style | RA300..Rxx |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | R300-1648.. |
| Cutting Direction | Right Hand |
| Maximum RPM | 16000 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R300-1648.. |
| Keyway Width (Decimal Inch) | 0.3839 |
| Manufacturers Catalog Number | 5739469 |
