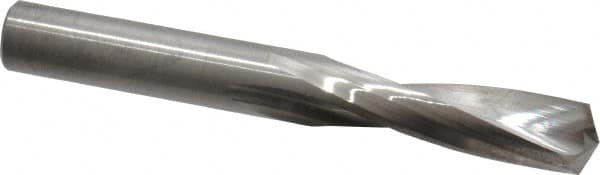

Screw Machine Length Drill Bit: 0.3937″ Dia, 135 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 85253540
Brand: Atrax
Model #: 460-403937
Product Specifications
| Drill Bit Size (mm) | 10.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 135 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 3.2500 |
| Overall Length (Inch) | 3-1/4 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (Decimal Inch) | 1.8750 |
| Flute Length (Inch) | 1-7/8 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Drill Bit Size Range (mm) | 9.50 to 11.00 |
| Material Grade | C2 |
