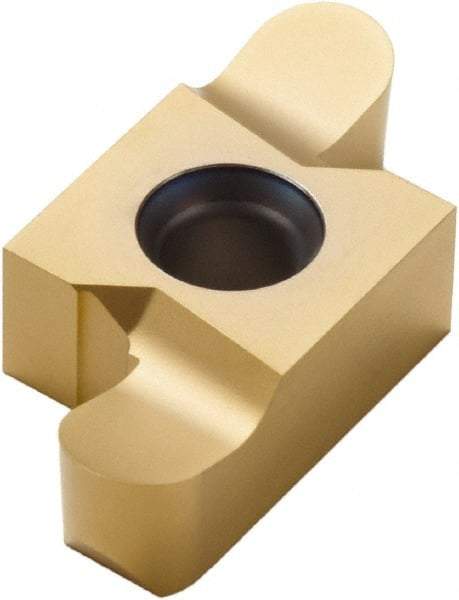

Seco - 1514ER R Grade CP500, 0.15" Cutting Width Carbide Grooving Insert - Right Hand, 0.059" Corner Radius, TiAlN/TiN Finish
Item #: 85235687
Brand: Seco
Model #: 26796
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 14ER |
| Insert Size | 15 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1500 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Insert Seat Size | 1.5 |
| Chipbreaker | R |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0590 |
| Coating Process | PVD |
| Overall Length (mm) | 14.00 |
| Overall Length (Decimal Inch) | 0.5512 |
| Series | Snap Tap |
