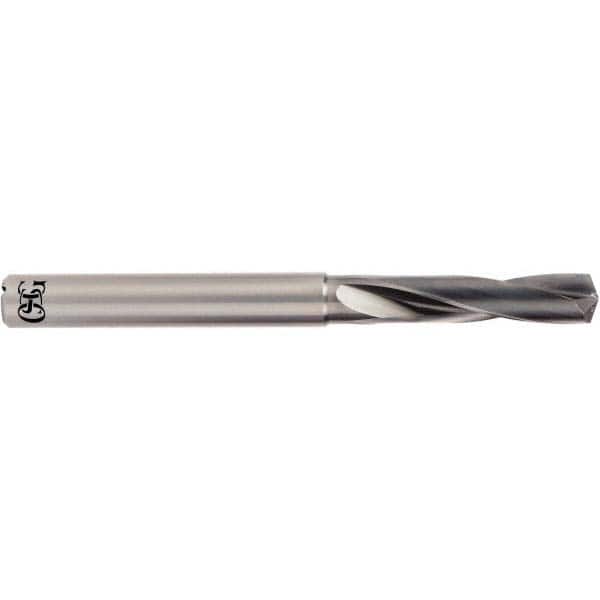

OSG - 3/16" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 55471239
Brand: OSG
Model #: 595018711
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
WXS is a nano-coating that yields higher hardness and oxidation temperature versus TiAlN. It is designed for maximum heat resistance in hardened steel over 50HRC and nickel-based alloy. WXS is a proprietary coating exclusive to OSG Tap and Die, Inc.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Drill Bit Size (Inch) | 3/16 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | WXS |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 29.00 |
| Overall Length (mm) | 68.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 6.00 |
| Spiral Type | Slow Spiral |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.018 |
| Drill Tip Finish/Coating | None |
| Web Thinning | R-Thinned |
| Series/List | 5950Ni |
| Length Type | Stub |
