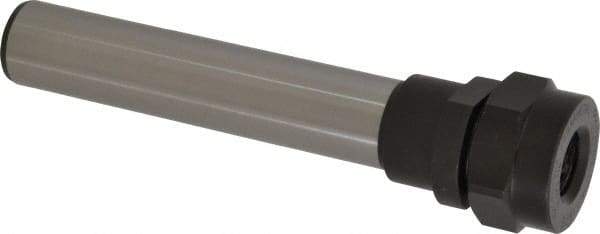

Kennametal - 3/64" to 3/4" Capacity, 2-1/2" Projection, Straight Shank, TG/PG 75 Collet Chuck - 8.5" OAL, 1-1/4" Shank Diam
Item #: 85145001
Brand: Kennametal
Model #: 1025794
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Single Angle |
| Collet Series | TG/PG 75 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Projection (Decimal Inch) | 2.5000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 3/64 |
| Minimum Collet Capacity (mm) | 1.19 |
| Maximum Collet Capacity (mm) | 19.05 |
| Maximum Collet Capacity (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 8.5000 |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 6.0000 |
| Hex Diameter (Decimal Inch) | 2.0900 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
