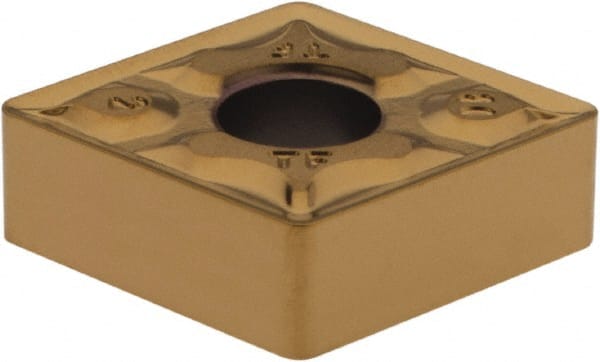

CNMG432TF IC507 Carbide Turning Insert 1/2″ Inscribed Circle, 1/32″ Corner Radius, 80° Diamond
Item #: 85108546
Brand: Iscar
Model #: 5504261
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC507 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | Isoturn |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | TF |
| Style | CNMG432TF |
| Coating/Finish | TiCN; TiN |
