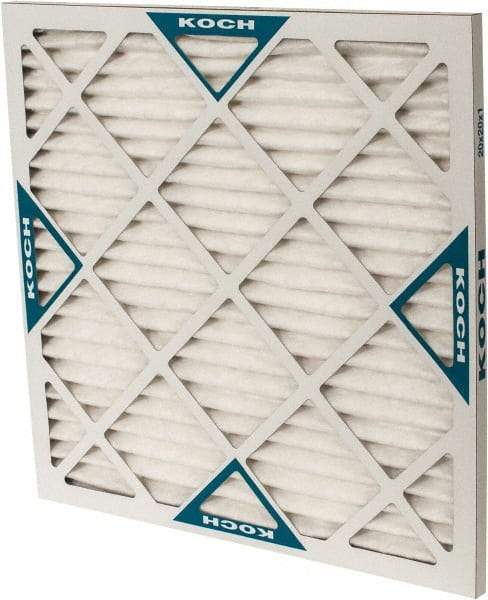

Made in USA - 20" Noml Height x 20" Noml Width x 1" Noml Depth, 80 to 85% Capture Efficiency, Wire-Backed Pleated Air Filter - MERV 13, Synthetic, Integrated Beverage Board Frame, 300 Max FPM, 840 CFM, For Any Unit
Item #: 85094456
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Filter Type | Wire-Backed Pleated |
| Nominal Height (Inch) | 20 |
| Nominal Width (Inch) | 20 |
| Nominal Depth (Inch) | 1 |
| Particle Capture Efficiency (%) | 80-85 |
| MERV Rating | 13 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Inch) | 19-1/2 |
| Actual Width (Inch) | 19-1/2 |
| Actual Depth (Inch) | 3/4 |
| Maximum Air Flow (FPM) | 300 |
| CFM | 840 |
| Initial Resistance at FPM (Inches w.g.) | 0.26 |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 200 |
| Capacity | High |
| Pleats Per Square Foot | 15 |
| Frame Material | Beverage Board |
| Features | Earns Leed Points |
| For Use With | Any Unit |
| Standards Met | UL 900; ASHRAE 52.2-2012 |
