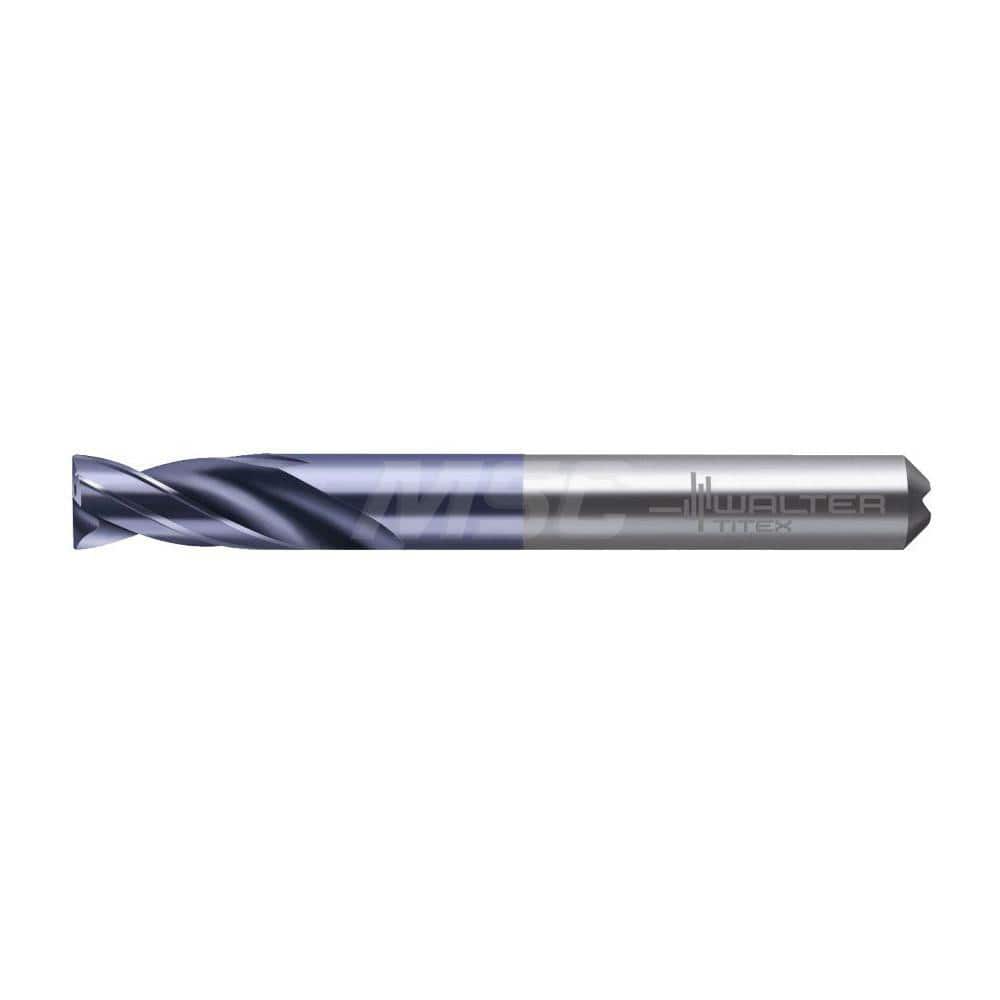

Screw Machine Length Drill Bit: 0.2953″ Dia, 180 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A7191TFT
Item #: 85060945
Brand: Walter-Titex
Model #: 5564927
Product Specifications
| Drill Bit Size (mm) | 7.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 180 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Point Cutting |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2953 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Series | A7191TFT |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.4724 |
| Maximum Drilling Depth (mm) | 12.00 |
| Shank Length (Decimal Inch) | 1.8504 |
| Shank Length (mm) | 47.00 |
| Drill Point Length (mm) | 0.22 |
| Drill Point Length (Decimal Inch) | 0.0087 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | p7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 1.1024 |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Drill Bit Size Range (mm) | 6.50 to 8.00 |
| Specification Number | DIN 6535HA |
| Specification Designation | DIN |
| Material Grade | K30F |
 | |
| MSC Part # | 85060945 |
| Mfr Part # | 5564927 |
| Country of OriginCountry of Origin is subject to change | China |
