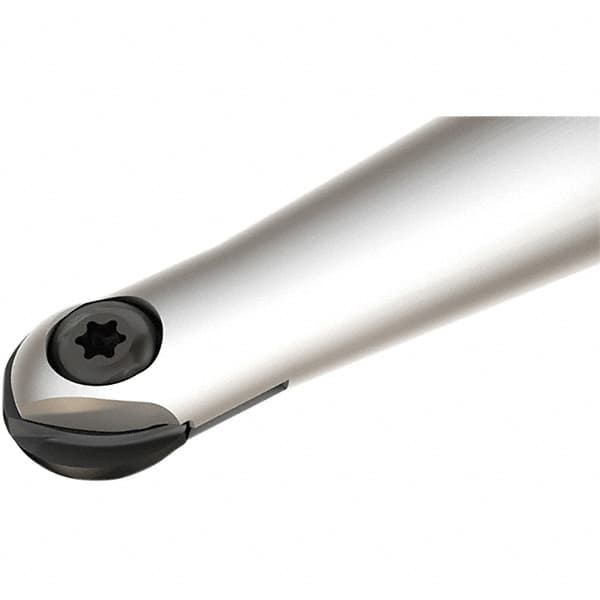

Iscar - 10mm Cut Diam, 10mm Shank Diam, 90mm OAL, Indexable Ball Nose End Mill - 25mm Head Length, Straight Shank, HCM D10 Toolholder, HBR-QF, HCR Insert
Item #: 85057073
Brand: Iscar
Model #: 3103568
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 10.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 10.00 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | HBR-QF; HCR |
| Toolholder Style | HCM D10 |
| Series | BallPlus |
| Overall Length (mm) | 90.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Head Length (mm) | 25.00 |
| Neck Diameter (Decimal Inch) | 0.3620 |
