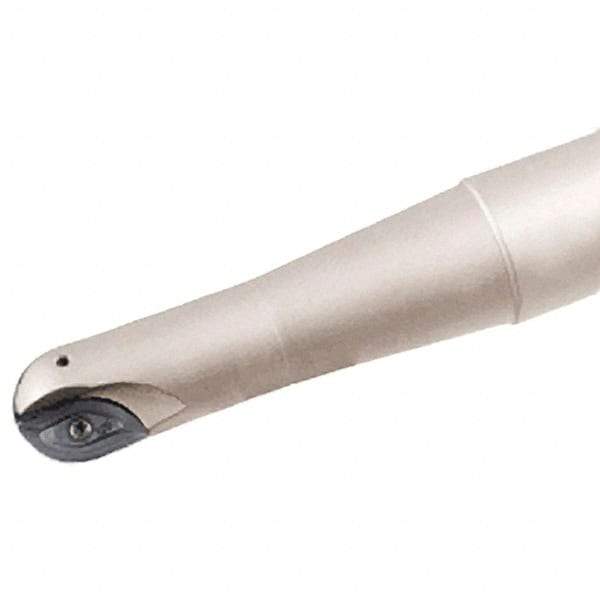

Iscar - 16mm Cut Diam, 13mm Max Depth of Cut, 20mm Shank Diam, 160mm OAL, Indexable Ball Nose End Mill - 60mm Head Length, Straight Shank, BCM Toolholder, BCR D160 Insert
Item #: 85056539
Brand: Iscar
Model #: 3103432
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (mm) | 13.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR D160 |
| Toolholder Style | BCM |
| Series | DropMill |
| Overall Length (mm) | 160.00 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 60.00 |
