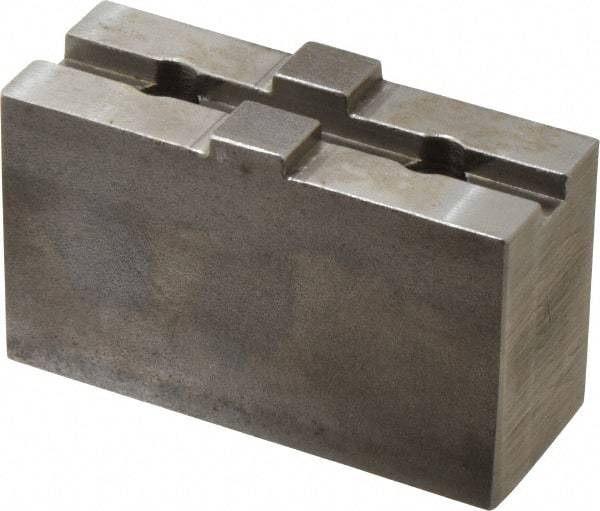

Atlas Workholding - Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - Steel, 1-3/4" Btw Mount Hole Ctrs, 3-5/16" Long x 1-1/4" Wide x 1.87" High, 0.31" Groove - Benchmark Tooling

Atlas Workholding - Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - Steel, 1-3/4" Btw Mount Hole Ctrs, 3-5/16" Long x 1-1/4" Wide x 1.87" High, 0.31" Groove


Item #: 85029106
Brand: Atlas Workholding
Model #: 2210-20609
Exact Tooling IR#: 04

Features and Benefits

Square end jaws are blanks that can be machined to final size.
Product Specifications
Jaw Type Square
Material Steel
Jaw Interface Type Tongue & Groove
Maximum Compatible Chuck Diameter (Inch) 8
Minimum Compatible Chuck Diameter (Inch) 8
Overall Height (Decimal Inch) 1.8700
Groove Width (Decimal Inch) 0.3100
Distance Between Mount Hole Centers (Decimal Inch) 1.7500
Jaw End Shape Square
Fastener Size (Inch) 3/8
Key Size (Decimal Inch) 0.3130
Overall Width/Diameter (Decimal Inch) 1.2500
Overall Length (Inch) 3-5/16
Overall Length (Decimal Inch) 3.3125
Material Grade 1018
$24.59
