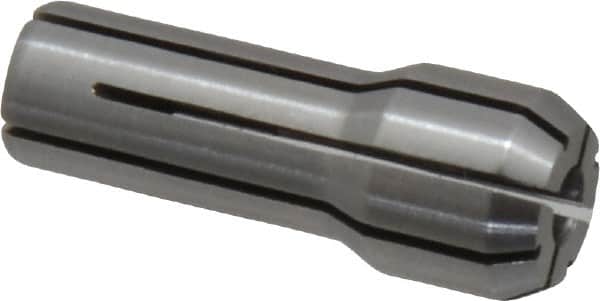

Kennametal - 1/8 Inch, 0.0938 to 1/8 Inch Collet Capacity, Series DA300 Double Angle Collet - 1 Inch Overall Length, 3/8 Inch Overall Diameter, 0.001 Inch TIR
Item #: 84912088
Brand: Kennametal
Model #: 1014581
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | DA Collet |
| Collet Series | DA300 |
| Size (Inch) | 1/8 |
| Size (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 1 |
| Overall Diameter (mm) | 9.53 |
| Overall Diameter (Decimal Inch) | 0.3750 |
| Minimum Collet Capacity (Decimal Inch) | 0.0938 |
| Maximum Collet Capacity (Decimal Inch) | 0.1250 |
| TIR (mm) | 0.0300 |
| TIR (Decimal Inch) | 0.001000 |
| PSC Code | 5136 |
