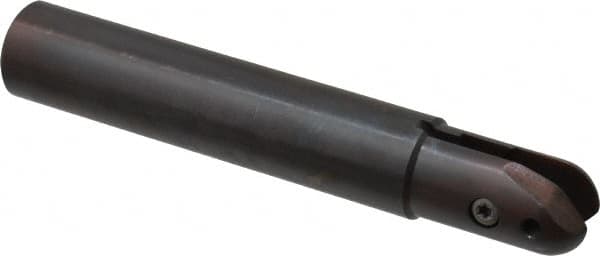

Minicut International - 1" Cut Diam, 0.642" Max Depth of Cut, 1" Shank Diam, 6" OAL, Indexable Ball Nose End Mill - 1-3/4" Head Length, Straight Shank, BNMI Toolholder, BNSI 1000 Insert
Item #: 84775410
Brand: Minicut International
Model #: BNMI-3262-32SN
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6420 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | BNSI 1000 |
| Toolholder Style | BNMI |
| Series | Megamill |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.2810 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Tapered Neck | No |
| Head Length (Decimal Inch) | 1.7500 |
| Neck Diameter (Decimal Inch) | 0.9000 |
